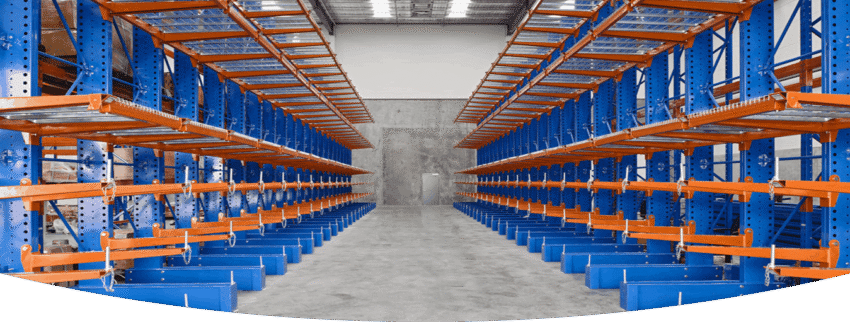

In modern warehousing and industrial storage, accessibility is just as critical as capacity. While standard pallet racks are excellent for uniform boxes, they often fail when you need to store long, bulky, or oddly shaped items like lumber, pipes, steel bars, furniture, or sheet materials. This is where custom cantilever racks become an indispensable asset.
Unlike traditional racking systems with vertical obstructions in the front, cantilever racks feature an open-front design. This allows forklifts and operators to load and retrieve materials with zero interference. For businesses struggling with wasted space or inefficient retrieval processes, a tailored cantilever solution doesn’t just organize a warehouse—it transforms workflow speed and safety.
What Makes a Cantilever Rack “Custom”?
A true custom cantilever rack goes beyond choosing a standard size off a catalog. It is engineered based on three specific parameters of your inventory:
1. Load Requirements (Weight and Distribution)
Standard racks might buckle under uneven, heavy loads. Custom designs consider the center of gravity for your longest materials. A reliable Cantilever Rack Manufacturer will calculate the column gauge, arm thickness, and base plate strength to handle dynamic loads (loading/unloading impact) and static loads (stored weight).
2. Material Length and Arm Configuration
If you store 24-foot steel tubes, a 10-foot rack arm is useless. Customization allows you to select:
-
Tapered arms for easier loading of pipes.
-
Horizontal or inclined arms for specific material flow.
-
Dual-taper designs to prevent rolling.
-
Adjustable arm heights to reconfigure space as your inventory changes.
3. Aisle and Maneuvering Space
Maximum accessibility means ensuring your forklift or overhead crane can move freely. A custom design optimizes the distance between columns and the cantilever arm overhang to reduce wasted aisle width while keeping safety intact.
Beyond Storage – The “Maximum Accessibility” Advantage
Why focus so heavily on accessibility? Because every minute a worker spends maneuvering around obstructions is a minute of lost productivity. Custom cantilever racks provide three distinct accessibility wins:
-
Zero Front Obstruction: You can slide a 20-foot beam directly onto the rack from the side without threading it through uprights.
-
Visual Inventory Management: Open-front rows allow for quick visual scanning, reducing time spent searching for specific materials.
-
Selective Retrieval: You can remove a single pipe from the middle of a row without moving the rest of the stack—a common problem with block stacking.
Raman Steel Industries specializes in this level of precision. With their advanced manufacturing plant and focus on high-grade materials, they engineer custom cantilever systems that transform chaotic storage yards into organized, high-efficiency zones.
Key Industries Benefiting from Custom Cantilever Racks
Custom cantilever racks are not a one-size-fits-all solution. They excel in specific sectors:
-
Metal and Pipe Suppliers: Stores brass, aluminum, and steel rods horizontally without bending.
-
Lumber and Building Materials: Keeps plywood, planks, and molding accessible and dry.
-
Furniture Warehouses: Holds finished chairs, tables, and headboards upright to prevent damage.
-
Automotive and Aerospace: Stores long drive shafts, trim pieces, or fuselage parts.
-
Retail Backrooms: Manages bulky seasonal stock (carpet rolls, Christmas trees) for quick floor restocking.
Structural Components of a High-Quality Custom Rack
To ensure longevity and safety, any custom cantilever rack must be built with precision. A top-tier Cantilever Rack Manufacturer will focus on:
-
Base (Footplate): Wide enough to prevent tipping when the top arms are loaded.
-
Columns: Roll-formed from high-tensile steel with hole patterns every 2-3 inches for fine height adjustment.
-
Arms: Available in step-down, straight, or inclined types, locked into the column with positive safety pins.
-
Bracing: Diagonal and horizontal bracing between columns to resist sway under heavy loads.
-
Finish: Powder coating or zinc galvanization to resist rust in humid or outdoor environments.
5 Steps to Designing Your Custom Cantilever System
To achieve “maximum accessibility,” follow this engineering-first approach:
-
Audit Your Inventory List: Categorize everything by length, weight, and retrieval frequency (e.g., daily picks vs. seasonal items).
-
Define Your Handling Equipment: Note the lift height, turning radius, and fork length of your forklift or reach truck.
-
Calculate Arm Load vs. Column Load: Ensure the rack base and column spacing can support the total weight, not just individual arms.
-
Plan for Future SKUs: Add 15-20% capacity headroom. Adjustable arms allow you to reconfigure heights as your product mix changes.
-
Consult on Safety Codes: A professional manufacturer will ensure the design meets OSHA or local seismic/wind load requirements.
Frequently Asked Questions (FAQ)
Q: How do cantilever racks differ from selective pallet racks?
A: Selective pallet racks have vertical uprights at the front, blocking direct side access. Cantilever racks have no front uprights, allowing you to place and retrieve long items directly from the side.
Q: Can I store pallets on a cantilever rack?
A: Yes, but it is not optimal. To use pallets, you must install a full-width shelf across the arms. This reduces the accessibility benefit. Cantilever racks are best for un-palletized long goods.
Q: Are custom cantilever racks more expensive than standard racks?
A: Initially, the unit cost might be slightly higher because the steel is thicker and engineering is involved. However, custom racks reduce wasted space (lowering square footage costs) and speed up retrieval (lowering labor costs), offering a better long-term ROI.
Q: How do I prevent items from rolling off inclined arms?
A: Ask your manufacturer for end stops or backstops. These are welded or bolted vertical plates at the tip of the arm that keep round materials (like pipes) securely in place.
Q: Can outdoor cantilever racks rust?
A: Yes if not properly treated. For outdoor use, request a hot-dip galvanized finish rather than standard powder coating. This provides cathodic protection even if the steel is scratched.
Conclusion: Transform Your Storage Layout Today
Standard storage solutions force your inventory to fit the rack. Custom cantilever racks designed for maximum accessibility do the opposite—they force the rack to fit your workflow. By eliminating front columns, you gain 100% unobstructed access, faster retrieval times, and significantly reduced material damage.
When evaluating manufacturers, prioritize those with modern facilities and a proven track record in heavy-duty engineering. With the right partner, even the most chaotic warehouse can become a model of efficiency. Review your longest, heaviest, or most awkward items today. If accessing them takes longer than 30 seconds, it is time to go custom.
