When someone asks which distribution transformer they should go with – oil cooled or dry type – the honest answer is: it depends. This is not a decision to make based on price alone, but on where the transformer will be installed, what load it will carry, and what the operating environment actually looks like.

If you are in the process of finding this transformer for a project, you need to consider all these factors. This is a decision that matters. Get it right and the transformer runs reliably for decades. Get it wrong and you’re dealing with maintenance headaches, safety concerns, or a replacement sooner than expected.

Here’s a straightforward breakdown of both types, where each one works best, and what to look at before making the call.

What Is an Oil Cooled Distribution Transformer?

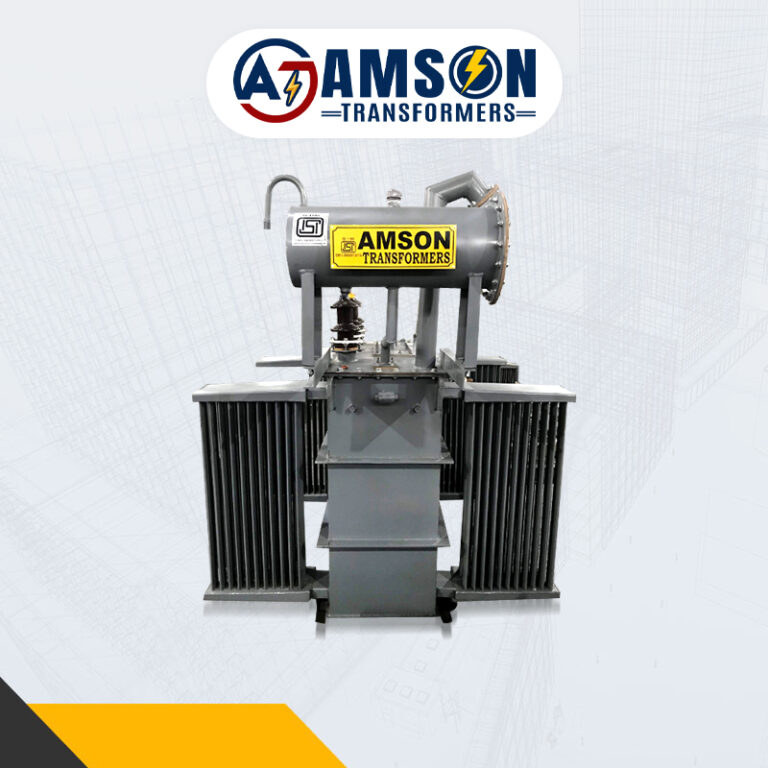

An oil cooled transformer – also called an oil immersed transformer – uses transformer oil as both a coolant and an insulating medium. The core and windings sit inside a sealed steel tank filled with mineral oil. The oil absorbs heat generated during operation and dissipates it through the tank walls and cooling fins.

This is the most widely used type of distribution transformer in India and across the world. You’ll find them on utility poles, in outdoor substations, and in large industrial installations where high capacity and long continuous operation are the requirements.

Where oil cooled transformers work best:

• Outdoor substations and utility distribution networks
• Industrial plants – steel, cement, chemical, textile
• Rural electrification and grid infrastructure
• High capacity applications above 1000 KVA
• Locations where cost per KVA needs to be kept low

What Is a Dry Type Distribution Transformer?

A dry type transformer uses air as the cooling medium instead of oil. The windings are encapsulated in resin or left open to air circulation, and the whole unit operates without any liquid inside.

Because there’s no oil involved, dry type distribution transformers eliminate the fire risk associated with oil-filled units. This makes them the preferred choice for indoor installations where safety regulations are stricter.

Where dry type transformers work best:

• Indoor commercial buildings – malls, hospitals, hotels, offices
• High-rise residential complexes
• Data centres and IT facilities
• Locations with strict fire safety requirements
• Underground substations and confined spaces
• Renewable energy installations

Key Differences Between Both Transformers

Factor	Oil Cooled Transformer	Dry Type Transformer
Cooling medium	Transformer oil	Air / Resin encapsulation
Installation	Outdoor / Industrial	Indoor / Commercial
Fire risk	Higher – oil is flammable	Lower – no flammable liquid
Capacity range	Higher – up to several MVA	Typically up to 2500 KVA
Cost	Lower upfront cost	Higher upfront cost
Maintenance	Oil testing and replacement needed	Minimal maintenance required
Efficiency	Slightly higher at full load	Comparable at partial loads
Noise level	Lower	Slightly higher
Environmental risk	Oil spill risk	No environmental contamination
Lifespan	25 to 30 years with proper maintenance	25+ years with minimal intervention
Best Application	Outdoor substations, utility networks	Indoor installations, hospitals, malls, high-rises



Factor to Consider Before Buying a Distribution Transformer Type

Installation Environment

This is the starting point for most buyers. If the transformer goes outdoors or in a dedicated substation yard away from occupied spaces, oil cooled is the standard and economical choice. If it goes inside a building – basement, electrical room, rooftop – dry type is what fire safety codes typically require.

Many industrial buyers default to oil cooled without thinking about it. That works fine for a factory compound. But for a commercial developer building a mixed-use project with retail and residential floors, dry type is often the only compliant option.

Capacity Requirements

Oil cooled distribution transformers scale better at high capacities. For loads above 2500 KVA, oil cooled is almost always the practical choice – dry type transformers at very high ratings become significantly more expensive.

For most commercial and institutional applications in the 100 KVA to 2000 KVA range, dry type units are available in the right sizes and are increasingly the preferred specification.

Maintenance Reality

Oil cooled transformers need periodic oil testing – Breakdown Voltage (BDV) testing tells you whether the insulating properties of the oil are still adequate. Oil also needs to be topped up, filtered, or replaced over time. In remote locations or facilities with limited maintenance staff, this adds to the total cost of ownership.

Dry type distribution transformers need very little in comparison. Periodic inspection, cleaning of ventilation, and checking the winding condition covers most of what’s required. For facilities where maintenance resources are stretched, this is a real advantage.

Fire and Safety Regulations

This is non-negotiable in certain applications. Hospitals, data centres, high-rise buildings, and public buildings in many states are required to use dry type or fire-resistant transformers. Before specifying an oil cooled unit for an indoor installation, check the applicable fire safety and building codes for your location and facility type.

Total Cost of Ownership

Oil cooled transformers cost less upfront. But factor in oil maintenance, periodic testing, the need for an oil containment pit in many installations, and the cost of oil disposal – and the gap narrows. Dry type costs more upfront but typically costs less to maintain year on year.

For a 10 to 20 year horizon, the total cost of both options is closer than the initial price difference suggests.

A Practical Approach to Make the Right Decision

Before specifying either distribution transformer type, answer these questions:

• Indoor or outdoor? – Indoor almost always means dry type
• What capacity is needed? – Above 2500 KVA, oil cooled becomes more practical
• What do local fire codes say? – Check before specifying
• How much maintenance resources are available? – Dry type needs less
• What is the budget horizon? – Upfront vs lifetime cost calculation
• Is there an environmental sensitivity? – Oil spill risk matters near water bodies or in sensitive areas

Most industrial outdoor applications – oil cooled. Most indoor commercial or institutional applications – dry type. Applications that fall in between need a proper assessment rather than a default assumption.

Getting the Specification Right

Beyond the oil vs dry type decision, the transformer still needs to be specified correctly for the load it will serve. Getting the KVA rating wrong – undersized or significantly oversized – affects efficiency, lifespan, and operating cost regardless of which type you choose.

Work with a manufacturer who will size the unit properly for your actual load profile, not just the connected load on paper. The two numbers are often different, and the difference matters.

Amson Transformers manufactures both oil cooled and dry type distribution transformers for industrial and commercial applications. They also offer technical guidance on selection, sizing, and specification built into the supply process.

Frequently Asked Questions

Q. Which is better – oil cooled or dry type distribution transformer?

Ans. Neither is universally better. Oil cooled suits outdoor and high-capacity industrial applications at lower cost. Dry type suits indoor, commercial, and fire-sensitive installations. The right choice depends on where the transformer will be installed and what it will power.

Q. Can a dry type transformer be installed outdoors?

Ans. Standard dry type transformers are designed for indoor use. Weatherproof enclosures are available for outdoor dry type installations, but this adds cost. For most outdoor applications, oil cooled remains the practical choice.

Q. What maintenance does an oil cooled transformer require?

Ans. Oil BDV testing, oil level checks, temperature monitoring, bushing inspection, and periodic oil filtration or replacement. Annual servicing is standard for oil cooled units in industrial use.

Q. What maintenance does a dry type transformer require?

Ans. Periodic cleaning of ventilation openings, visual inspection of windings and connections, temperature checks, and insulation resistance testing. Maintenance requirements are significantly less than oil cooled units.

Q. What is the lifespan of a distribution transformer?

Ans. Both oil cooled and dry type transformers can last 25 to 30 years or more with proper maintenance. Oil quality management is the key variable for oil cooled units. Thermal management – ensuring adequate ventilation – is the key variable for dry type units.

Q. Is a dry type transformer more expensive than oil cooled?

Ans. Yes, upfront. Dry type transformers typically cost 20 to 40 percent more than equivalent oil cooled units at the same KVA rating. However, lower maintenance costs over the transformer’s lifetime can offset a significant part of that difference.

Q. Which type is required for hospitals and data centres?

Ans. Most hospitals, data centres, and high-rise buildings specify dry type transformers due to fire safety requirements and the sensitivity of the loads they serve. Check local fire and electrical codes for the specific requirements in your location.
